Why the Kodiak for Special Mission?

The Daher Kodiak is an amazingly safe airplane, meeting the latest aviation standards.

• The Daher Kodiak 100’s PT6A-34 Turbine engine delivers a 9.67:1 power-to-weight ratio and the optional cargo pod results in virtually no loss of performance.

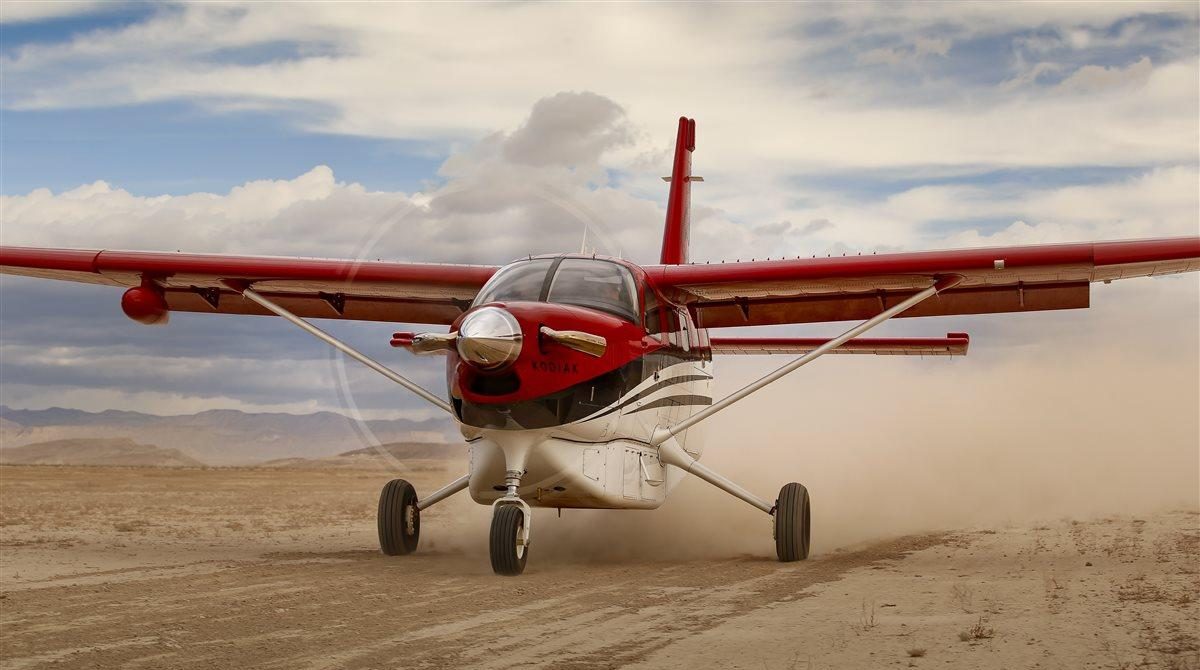

• The Daher Kodiak 100 is tough, designed for rugged backcountry operations, able to take off and land in less than 980ft.
• The Daher Kodiak 100 has a max takeoff weight of 7,255lbs (3,290kg) allowing for mission equipment, crew, and full fuel.
• The Daher Kodiak 100 has the lowest operating costs in its class.
• The Daher Kodiak 100 is nearly impossible to stall.

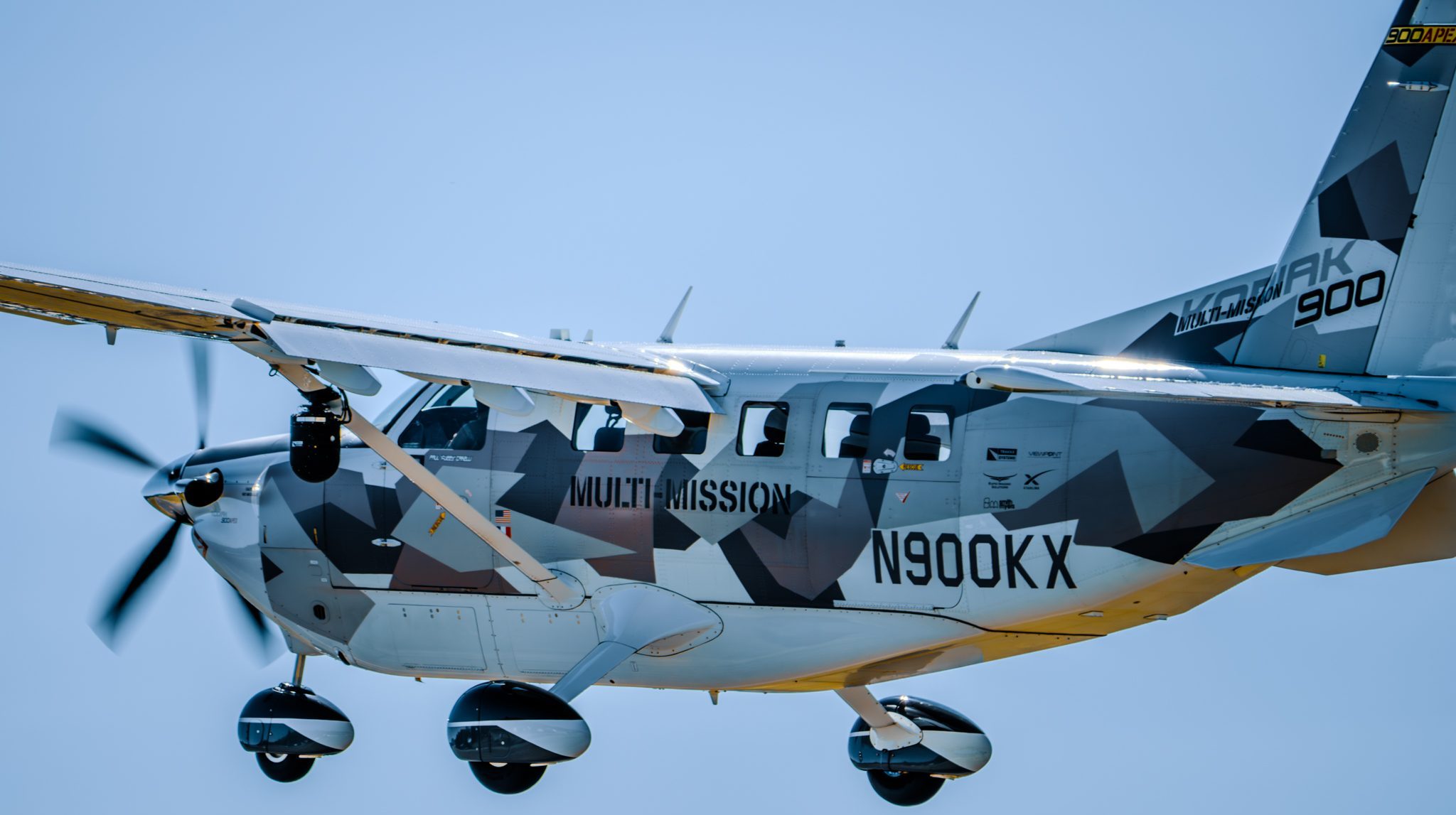

• The Daher Kodiak 900 is larger and faster than the 100.
• The Daher Kodiak 900 is powered by a PT6A-140A turboprop engine and is optimized for rugged conditions.
• The Daher Kodiak 900 boasts a fuselage length extension of 3.9ft compared to the 100 to provide more passenger room & cargo space.
  • 309 cubic feet
• The Daher Kodiak 900 has a cruise speed of 210KTAS and a max range of 1129nm.
• The Daher Kodiak 900 has a 9% reduction in specific fuel consumption.

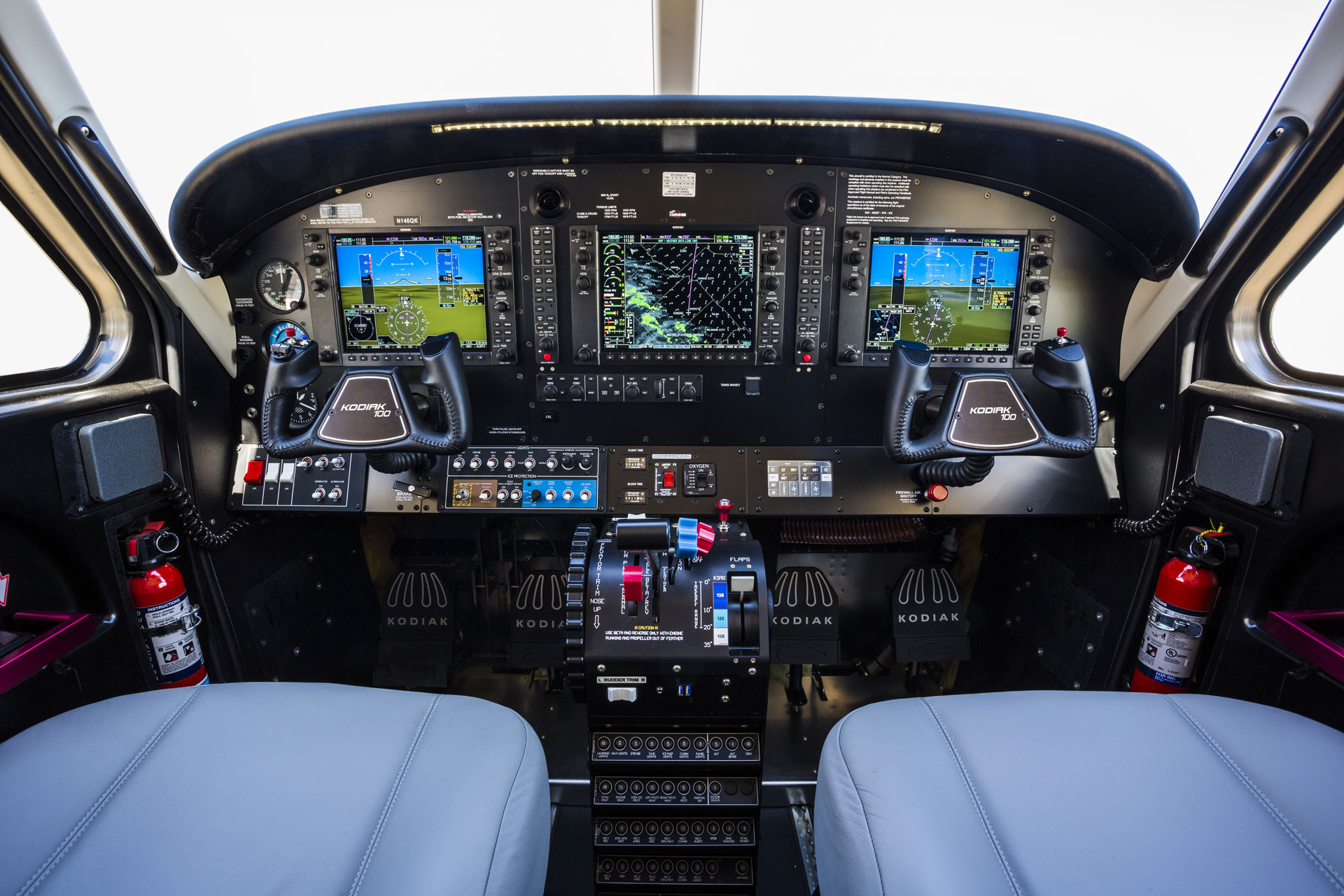

Newly integrated into the Kodiak 100/900 cockpit is the next generation G1000 NXi avionics suite. The G1000 NXi offers a combination of new features that ease pilot workload and increase the margin of safety.

The PFD has multiple features to help maintain situational awareness in a high workload environment. With the ability to inset a moving map into the HSI, it gives the pilot the ability to maintain an instrument scan while viewing crucial information such as traffic, terrain, weather, navaids, and obstacles. HSI mapping and Synthetic Vision Technology are standard equipment on every Kodiak.

Other features of the Kodiak 100900 Avionics suite:

• Garmin GWX-70 Weather radar
• Turbulence Detection with ground clutter suppression option
• Garmin GTX-345R Transponder w/ADS-B
• L3 ESI-500 3n1 Standby Instrument
• Angle of Attack Indexer
• Video Input in MFD for EO/IR Video

CUSTOMIZABLE TO FIT SPECIAL MISSION NEEDS

• External Cargo/Equipment Pod
  • Max load carrying weight of 750lbs
• TKS Ice Protection System
• 29″ Tire Combo Upgrade
  • Improved handling and durability for unimproved airstrips
• Single-Point Refueling
• Gravel Deflector
• 10-Place Oxygen Upgrade
• Cockpit Voice & Data Recorder Options
• Air Conditioning
• Turned Out Exhaust Stacks
  • Directs the exhaust away from fuselage to greatly reduce exhaust fumes near aft Roll-Up door

KODIAKCARE MAINTENANCE PACKAGE

• Comprehensive two-year airframe warranty
• 24/7 online access to the Tech Pubs Portal
• 24/7 AOG Response
• 24/7 Technical Support
• Three Day Intl Freight on Warranty Parts
• Kodiak POH/AFM Revision Service
• One-Year Enrollment to CAMP Engine Health Monitoring (EHM) and Maintenance Tracking (MTX) service programs
• Two-year or 400 hours Enrollment in ESP – Eagle Service Plan for engine maintenance

Kodiak 100/900 – the most affordable, multi-role, single engine turboprop platform in the ISR industry. Kodiak 100/900 combines Rapid Imaging Solutions’ extensive ISR systems integration experience in special mission aircraft with the capabilities of the Daher Kodiak-100/900. Great slow-flight capability allowing for better loiter, longer mission endurance, excellent short field take off and landing (STOL), and purpose built, rugged design make the Kodiak 100/900 the platform of choice for Special Missions.

KODIAK 100/900 BASE CONFIGURATION

• Mission Management System integrated with Garmin Avionics

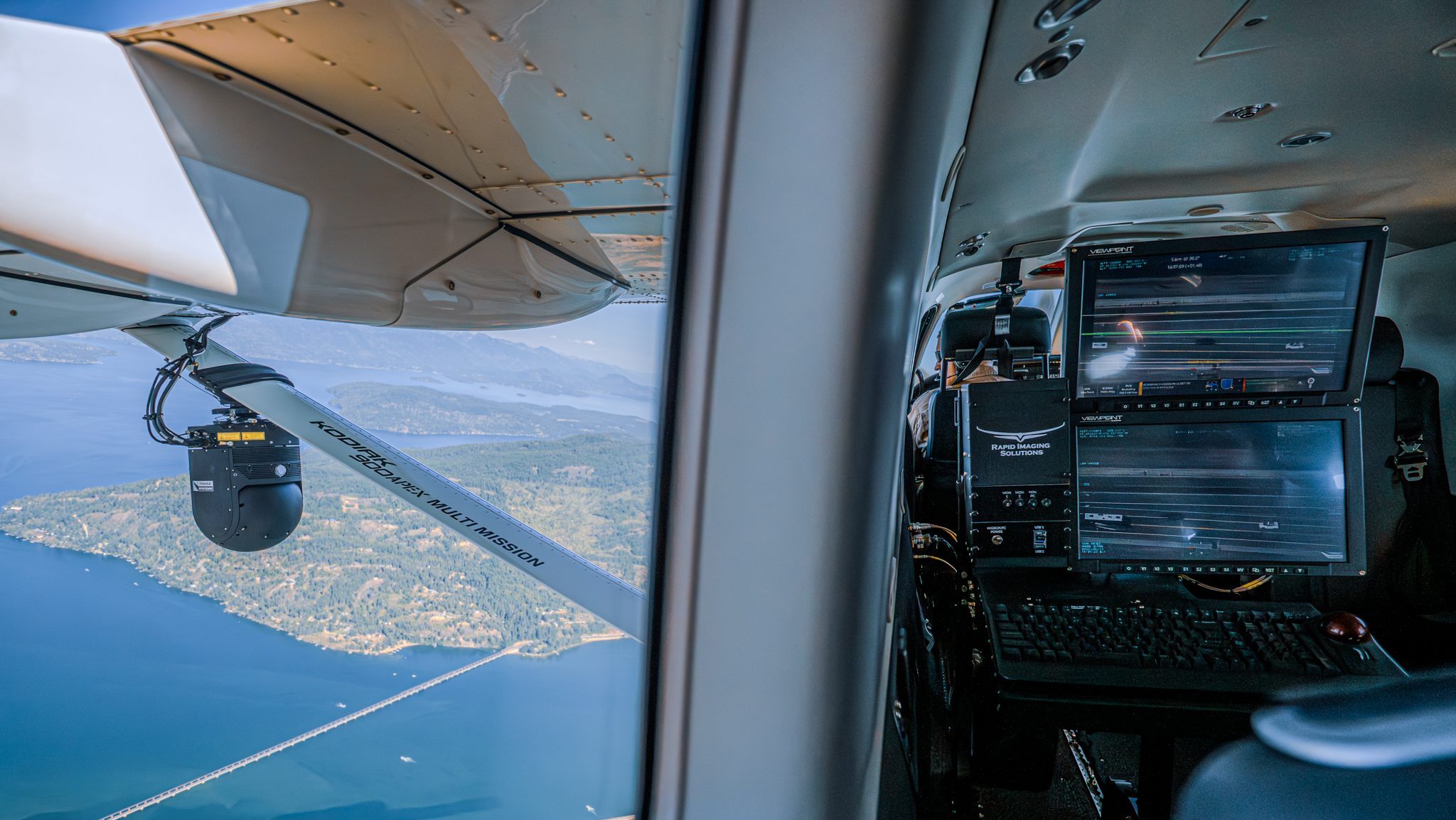

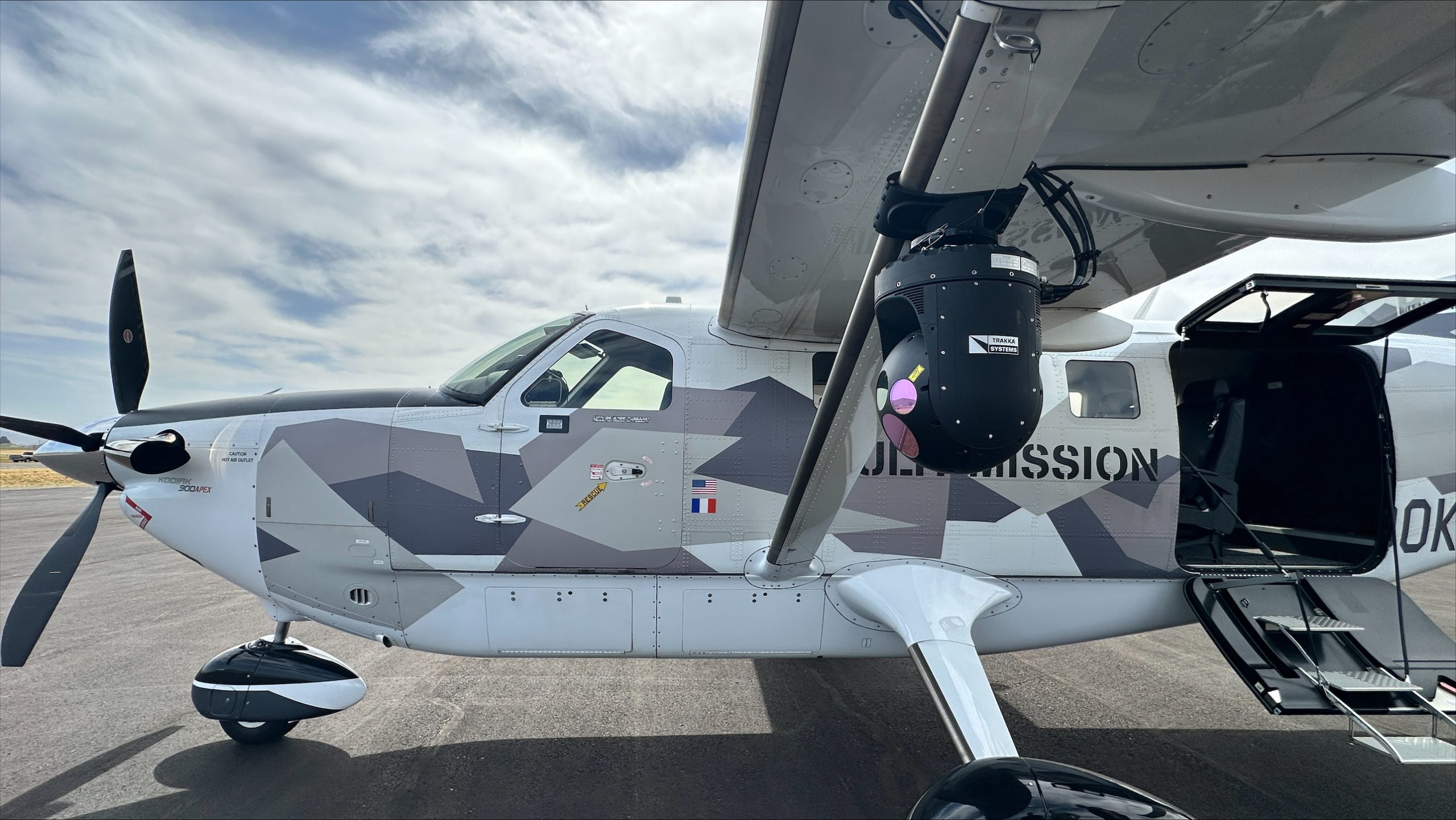

• Industry Leading EO/IR System – several models available (Flir, Wescam, Trakka, Hensoldt)

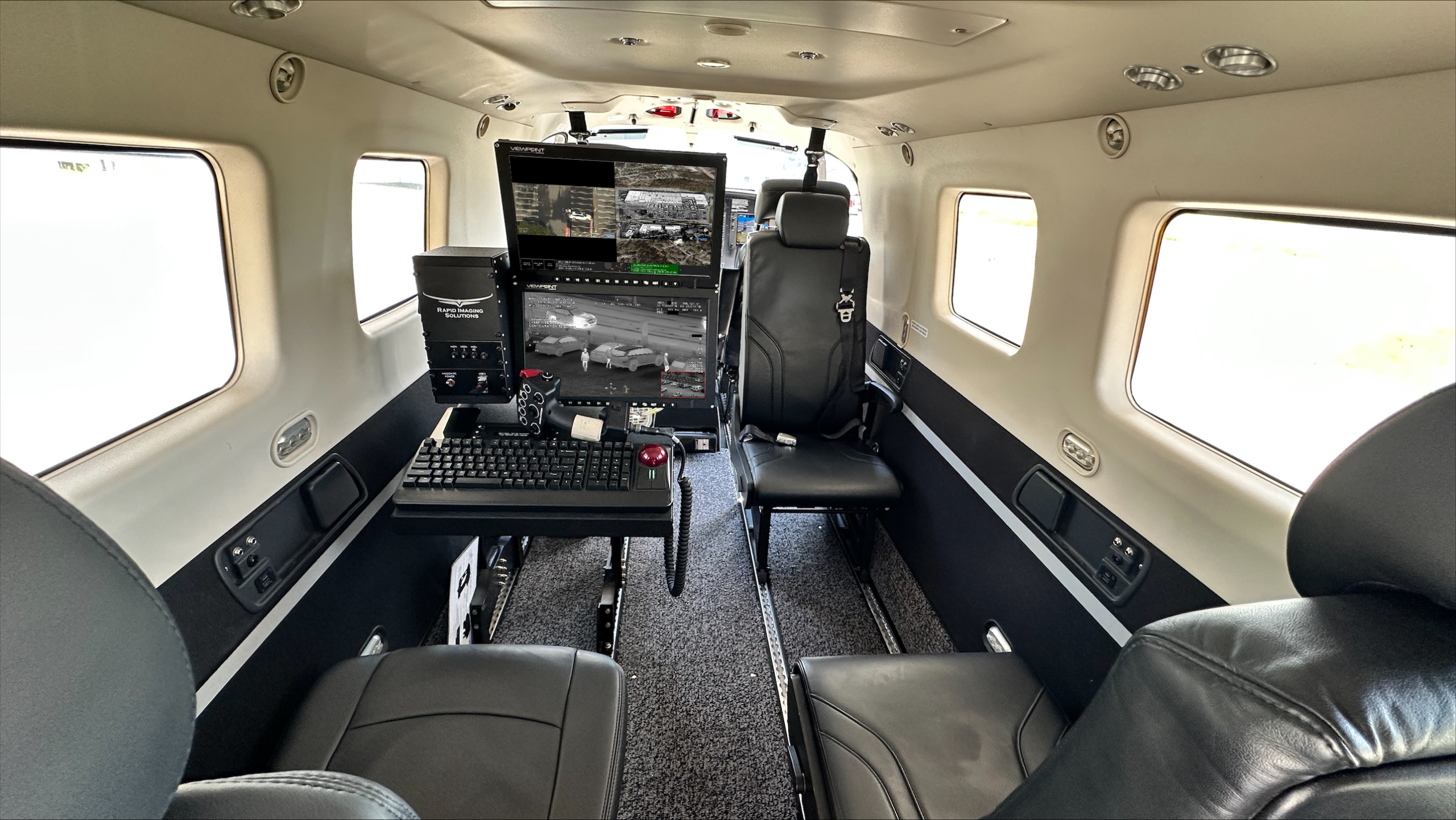

• 1-2 MSO Operator Workstations and 1/2 observer stations
• Tactical Voice VHF/UHF Communications with P-25 Capability
• L/S/C Band tactical data link with ground station
• Rugged airborne Displays with touchscreen, EMI hardened, Split/Quad screen options. NVG backlight available.
• Starlink

Interior Configurations are rapidly reconfigurable to convert the Kodiak 100/900 to ISR, Troop deployment, Parachute operations (troops & cargo), AeroMedical, and Sig/Comint.

ADDITIONAL KODIAK 100/900 OPERATIONS

• Hyper-Spectral systems with Fire Mapping
• Exportable COMINT
• DoD COMINT
• Lightweight SAR/GMTI Radar Systems
• Lightweight Maritime Radar Systems
• Jump and Cargo Door
• Additional communications, tactical relay, and/or datalink options
• Fixed or retractable payload mount
• SatCom Systems for Voice/Data/FMV (lo res)
• SAR/CSAR DF Systems
• Moving Target Indication available
• Additional EO/IR payload options available, scalable both up and down in price/capability
• Multi-mode radar

FAA CERTIFICATION

• Full Engineering and Certification resources to support Supplemental Type Certificate (STC), and major alteration and repair
• Document and Report Development: Structural, Electrical, Mechanical, Flight Manual Supplement, Instruction for Continued Airworthiness, Project Specific Certification Plan, and Certification Operating Procedures
• Validation of FAA STCs with foreign Civil Aviation Authorities
